An outboard motor provides the essential power for boat navigation, making it crucial for any boating outing. Choosing the appropriate motor requires understanding how these complex machines function and what distinguishes the different types. An outboard motor is a self-contained propulsion unit mounted on the boat's transom.

It combines an engine, gearbox, and propeller into a portable unit, facilitating easy installation, removal, and steering. The operator navigates the boat by pivoting the motor, which directs the propeller's thrust.

Keep reading our complete guide to outboard motors to learn about their core components, operational principles, and maintenance considerations. This will help you make a confident choice for your vessel.

How an Outboard Motor Works

Understanding the mechanics of an outboard motor clarifies its performance and maintenance needs. Each part works in concert with others to convert fuel into forward motion. The process begins with the engine and concludes with the propeller pushing water.

The Powerhead

At the top of the outboard sits the powerhead, which houses the internal combustion engine. This component functions like a car engine, containing cylinders, pistons, and a crankshaft. The powerhead generates the force required to turn the propeller.

• Two-Stroke Engines: These engines complete a power cycle in two piston strokes. They mix oil with fuel for lubrication, which produces a lighter engine with rapid acceleration. However, they also produce higher emissions.
• Four-Stroke Engines: A four-stroke engine completes its power cycle in four piston strokes. It has a separate lubrication system, similar to an automobile engine. This results in cleaner, quieter, and more fuel-efficient operation, though the engine weighs more.

The Midsection

The midsection links the powerhead to the lower unit and houses key components such as the driveshaft, which transmits power from the engine to the gearbox. It also contains the exhaust system that channels gases from the engine and expels them underwater via the propeller hub, helping to reduce engine noise. Furthermore, a water pump in this section draws in cool water to prevent the engine from overheating.

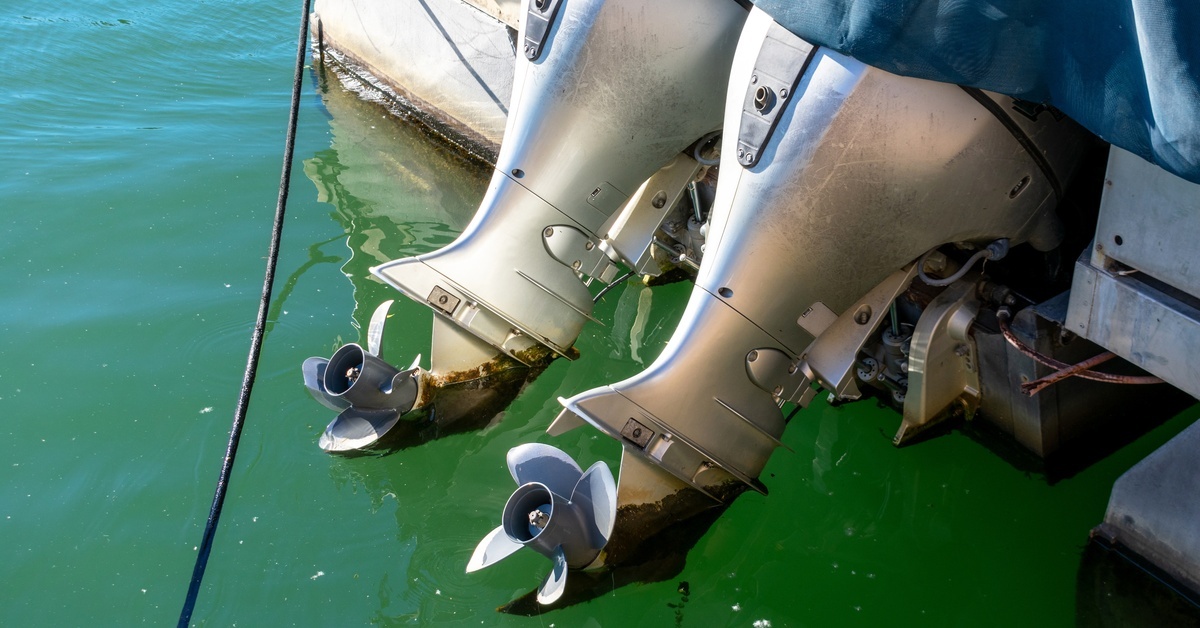

The Lower Unit

The lower unit sits underwater and contains the gearbox and propeller. The gearbox converts the driveshaft's vertical rotation into the horizontal rotation needed to spin the propeller. It contains a set of gears that allow the engine to operate in forward, neutral, or reverse.

The propeller, attached to the end of the propeller shaft, features blades angled to push water backward when they spin. This action generates thrust, propelling the boat forward. The size, pitch, and number of blades on a propeller affect the boat's acceleration, top speed, and handling.

Key Operational Components

Several systems work together to ensure the outboard motor runs smoothly. These include the fuel, ignition, and cooling systems. The proper functioning of each system contributes to the motor's overall reliability and performance.

Fuel System

The fuel system delivers gasoline from the fuel tank to the engine's cylinders.

1. Fuel travels from the tank through a fuel line to the engine.
2. A fuel pump moves the fuel to the carburetors or fuel injectors.
3. Carburetors mix fuel and air before sending the mixture to the cylinders. Modern engines often use electronic fuel injection (EFI) for more precise delivery, improving efficiency and performance.
4. The fuel-air mixture ignites inside the cylinders, driving the pistons and creating power.

Ignition System

The ignition system creates the spark that ignites the fuel-air mixture. A flywheel at the top of the crankshaft has powerful magnets. As the flywheel spins, it passes by a stator, generating an electrical charge. This charge travels to an ignition coil, which amplifies the voltage. The high-voltage electricity then goes to the spark plugs, creating a spark at the precise moment to ignite the fuel.

Cooling System

Outboard motors generate intense heat and require a robust cooling system. A water pump, typically located in the lower unit, draws in raw water through intake screens. The pump's impeller forces the water up through tubes into the engine's cooling passages. The water circulates through the cylinders and powerhead, absorbing heat before exiting through the exhaust system. A small stream of water, called a tell-tale, visibly exits the side of the motor to confirm that the cooling system is functioning correctly.

Maintaining Your Outboard Motor

Routine maintenance keeps an outboard motor in excellent working condition and extends its lifespan. Neglecting simple tasks can lead to poor performance and expensive repairs. Regular checks and servicing are foundational to reliable operation.

Some boaters face shortages when looking for specific motor parts, especially for popular brands. Working with authorized Yamaha outboard dealers offers advantages, including better access to inventory and genuine components for service and repairs. This relationship helps keep your motor running with manufacturer-approved parts.

Routine Maintenance Checklist

• Flush the Engine: After every use in saltwater and periodically in freshwater, flush the engine with clean water. This prevents salt, sand, and mineral buildup in the cooling passages.
• Inspect the Propeller: Check the propeller for damage, such as nicks, dents, or bent blades. A damaged propeller can cause vibrations and reduce performance. Also, check for fishing line wrapped around the propeller shaft, as it can damage seals and lead to gearcase leaks.
• Check Fuel and Oil Levels: Before each trip, verify you have enough fuel. For four-stroke engines, check the engine oil level and top it off if necessary. For two-stroke motors, ensure the oil-injection reservoir is full or the fuel is correctly premixed.
• Change Gearcase Lube: Change the gearcase lubricant at least once a season or every 100 hours of operation. Inspect the old lube for a milky appearance, which indicates water intrusion and requires seal replacement.

Making an Informed Purchase

This guide to outboard motors and how they operate should equip you to select and maintain your equipment confidently. Understanding the differences between two-stroke and four-stroke engines, along with the functions of the fuel, ignition, and cooling systems, empowers you to ask the right questions and perform necessary upkeep. With proper care, your outboard motor will provide reliable power for countless hours on the water.
