ePropulsion

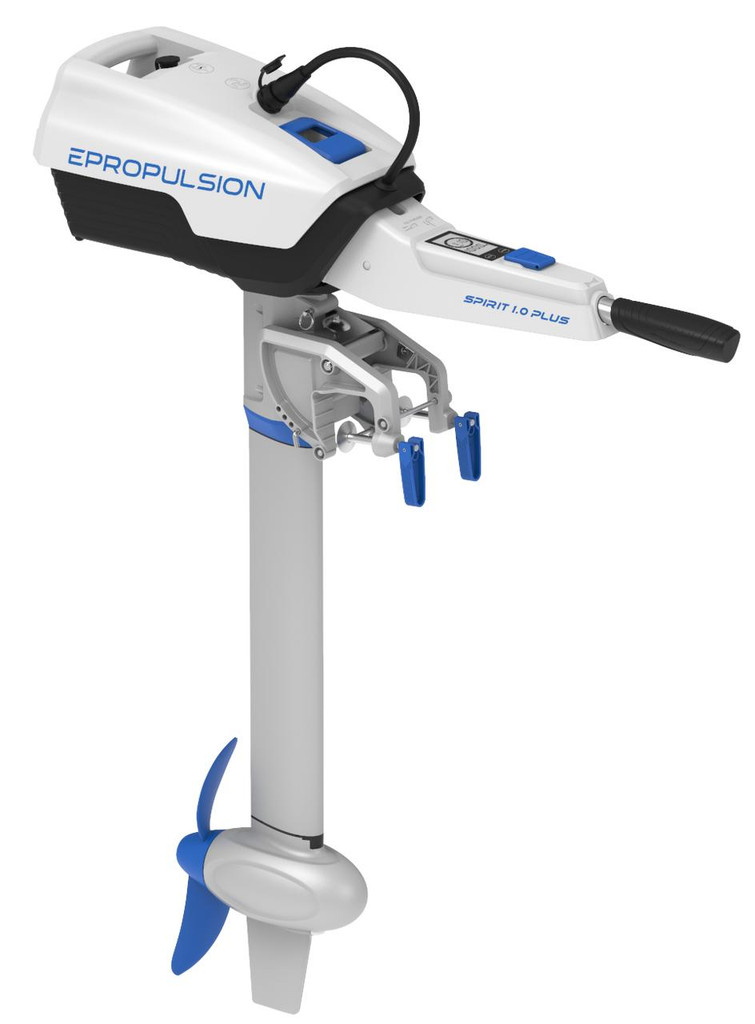

ePropulsion Electric Outboards | Spirit 1.0 Plus Longshaft

$2,999
( 1 Review )

Current stock: 0


1276Wh battery, detachable & foldable design, 3HP propulsion.

The Most Lasting Ever

The 1KW Lithium-ion battery of SPIRIT 1.0  PLUS delivers the most charming performance of its kind. At full speed, one battery works for up to 1.25 hour; but for leisure cruise, it usually lasts 5+ hours. Thanks to its detachable design, you can  bring alternate batteries on board to extend your sailing time.

Enjoy Peace in The Midst of Motion

Unlike traditional petrol outboards, SPIRIT 1.0 PLUS is emission free and much quieter. You can enjoy an unbothered trip when the noise from motor is covered by sound of splashes.

BETTER EXPERIENCE + ZERO EMISSION = 60dB MAXIMUM

Advanced Design

Better Performance

SPIRIT 1.0 PLUS features gearbox free design and optimized motor structure. The high-quality brushless DC motor with a max efficiency of 90% helps SPIRIT 1.0 PLUS achieve an overall efficiency of more than 50%. And without gearbox, this electric outboard motor will greatly lower - even eliminate noise and save maintenance troubles that often bother the owners of gas outboards.

Self-contained Design

The battery locates on top of the outboard to save valuable space for the boat. Its self-contained design makes it easy to replace a backup SPIRIT PLUS Battery on board with 2 simple steps if the original one is running out of power.

Real-time Display

This smart screen keeps you informed of all essential information you need to know during the journey. Real-time voltage, power and remaining battery is indicated as primary parameters.

Easy to Connect

Only 2 steps are needed to have the battery installed. First, place the battery on the battery base. Then plug power cable into the power socket on battery.

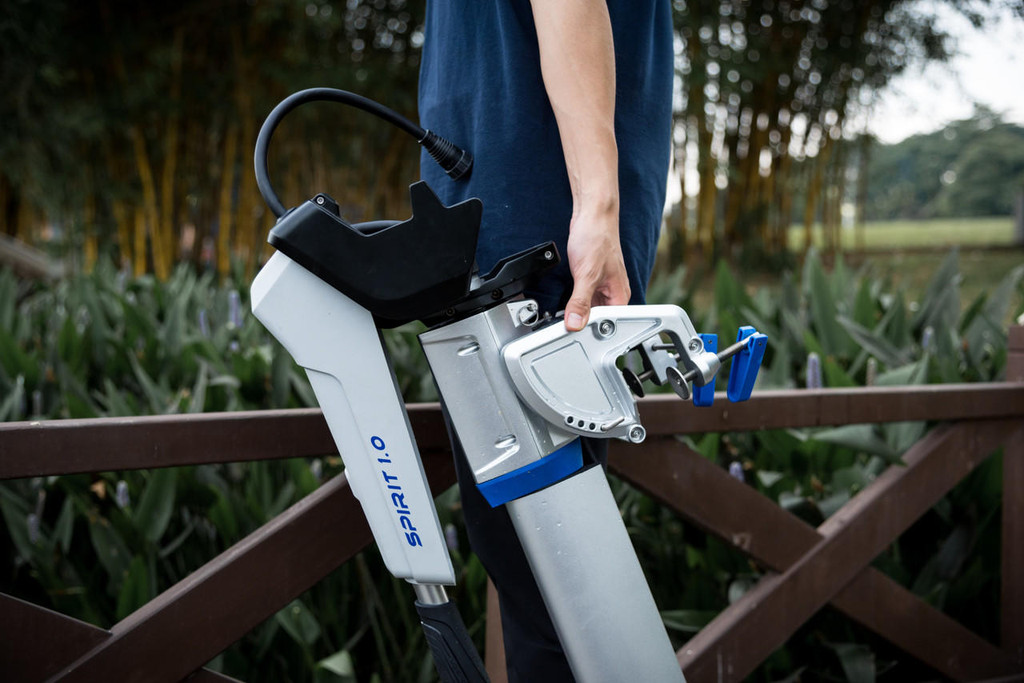

Foldable Tiller

This 3HP foldable electric outboard motor weighs only 21.5lbs. It’s designed to be portable so you can lift the motor by one hand and carry the battery by the other with ease.

Easy to Steer

The stepless throttle handle with forward, reverse and stop capabilities brings you a wonderful steering experience.

No Worry for Safety

With connections and components satisfying IP67, Spirit 1.0 can operate even if immersed in water. When detached, the battery won’t have any output to protect the electric outboard motor even if the connectors are all wet.

Shipping:
$0 (Fixed Shipping Cost)
Comparable Gasoline Outboards (propulsive power):
3HP
Comparable Gasoline Outboards (thrust power):
4HP
Weight (including battery):
41.6 lbs / 18.6kg
Weight (w/o battery):
22.1 lbs / 9.8kg
Weight of Battery:
19.5 lbs / 8.8kg
Battery Size:
16.37" x 10.82" x 7.95" / 416mm x 275mm x 202mm
Input Power (from battery):
1KW
Propulsive Power (thrust x speed, shaft power x propeller efficiency):
500W
Max Overall Efficiency:
50%
Max Propeller Speed:
1200rpm
Static Thrust:
66 lbs
Shaft Length:
29.5" / 625mm
Standard Propeller Diameter:
11.5" / 280mm

1 Review

5/5
Gregory Cain Jun 4th 2018

Spirit 1.0 Longshaft

The Spirit 1.0 is both a mechanical work of art and a serious machine. The fit and finish are exceptional and the attention to detail is superb. The most remarkable feature is how quite this motor is; you could run it in a library. The throttle and steering controls are engineered to be very ergonomic. The amount of friction in their adjustments make them easy to use and fine tune, but still they keep their settings hands free. I am quite satisfied with the performance. Yesterday my wife and I took our SeaEagle inflatable fishing boat out for a trip of just under three hours of cruising time traveling both with and against the tides. For a one mile stretch we headed into a narrow shallow passage with a 2 mph current against us with swirling waters. To move ahead at 2 mph land speed required about 60% throttle; the Spirit handled this with ease. The responsive steering and throttle made the tricky passage safe and easy. Overall with two people in a loaded boat we navigated 8 miles on 45% of our battery in a mix of headwinds, currents and tides. Top speed in my inflatable is just under 6 mph. Fully loaded with two people I estimate my cruising range to be in the 20 mile range on saltwater with wind, tides and currents. I would imagine more range with one person, light load, on protected still inland waters. The best feature is the ease of loading, unloading and mounting on the transom. I am older and have a bad shoulder. I can easily mount the 20 lb lower unit on the transom by myself and then add the 18 lb battery afterwards. This is far easier than mounting my old 40 lb gas motor, or hoisting a 60 pound lead acid battery on board for a traditional electric. Once underway, the Spirit is so quiet you won’t scare the fish away and two people can have a normal conversation with soft voices while underway at cruising speed; impossible with a gas motor. The unit did well in some adversity too. I hit a bed of kelp and seaweed and tangled the prop. Just a quick reverse thrust and it spit the vegetation back and my prop was quickly free and we were moving again. Is the Spirit more expensive than a traditional gas or electric trolling motor? Yes, but in my book, the advantages it yields and the performance it gives makes it the best of both; the power of the gas, with the quiet of the electric. It is solidly built, and it is a serious machine with fine workmanship; so far I am quite pleased with my purchase.
