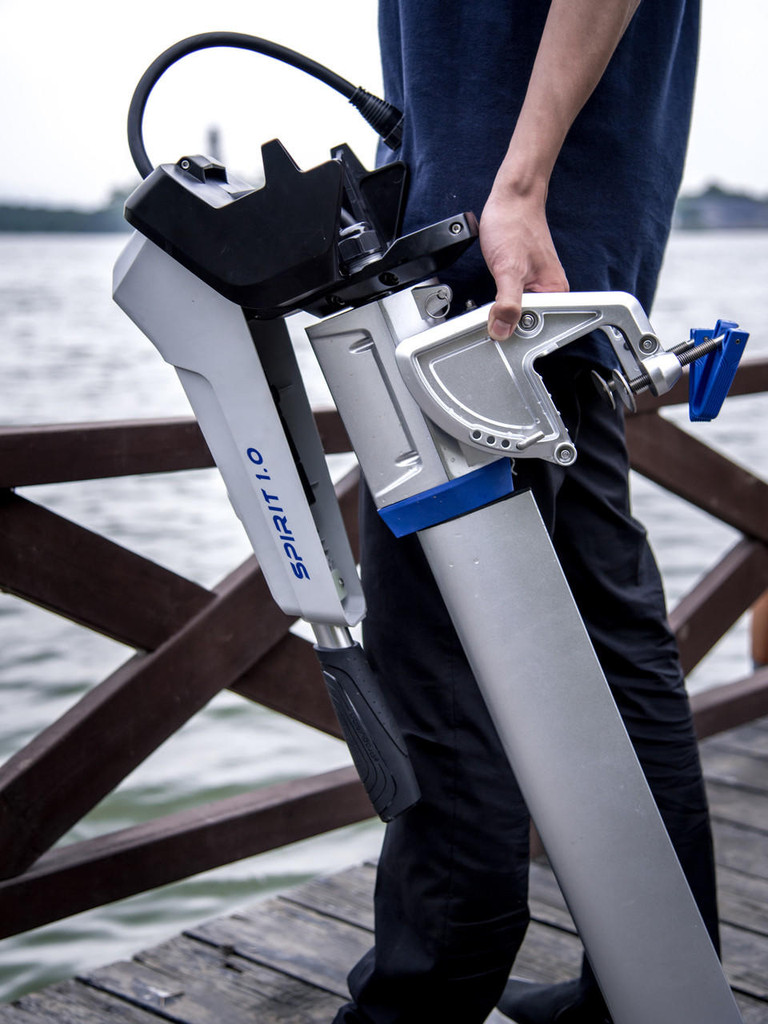

ePropulsion Electric Outboards | Spirit 1.0 Plus Shortshaft Motor Body
$1,650
Current stock:
1
Battery Not Included
Requires Purchase of Spirit 1.0 Plus 1276Wh battery, detachable & foldable design, 3HP propulsion or an equivalent 48-volt third party battery.
To order the motor and battery together please click here.
Enjoy Peace in The Midst of Motion
Unlike traditional petrol outboards, SPIRIT 1.0 PLUS is emission free and much quieter. You can enjoy an unbothered trip when the noise from motor is covered by sound of splashes.
BETTER EXPERIENCE + ZERO EMISSION = 60dB MAXIMUM
Advanced Design
Better Performance
SPIRIT 1.0 PLUS features gearbox free design and optimized motor structure. The high-quality brushless DC motor with a max efficiency of 90% helps SPIRIT 1.0 PLUS achieve an overall efficiency of more than 50%. And without gearbox, this electric outboard motor will greatly lower - even eliminate noise and save maintenance troubles that often bother the owners of gas outboards.
Self-contained Design
The battery locates on top of the outboard to save valuable space for the boat. Its self-contained design makes it easy to replace a backup SPIRIT PLUS Battery on board with 2 simple steps if the original one is running out of power. (Battery Not Included)
Real-time Display
This smart screen keeps you informed of all essential information you need to know during the journey. Real-time voltage, power and remaining battery is indicated as primary parameters.
Easy to Connect
Only 2 steps are needed to have the battery installed. First, place the battery on battery base. Then plug power cable into the power socket on battery.
Foldable Tiller
This 3HP foldable electric outboard motor weighs only 21.5lbs. It’s designed to be portable so you can lift the motor by one hand and carry the battery by the other with ease.
Easy to Steer
The stepless throttle handle with forward, reverse and stop capabilities brings you a wonderful steering experience.
No Worry for Safety
With connections and components satisfying IP67, Spirit 1.0 can operate even if immersed in water. When detached, the battery won’t have any output to protect the electric outboard motor even if the connectors are all wet.
- Shipping:
- $0 (Fixed Shipping Cost)
- Comparable Gasoline Outboards (propulsive power):
- 3HP
- Comparable Gasoline Outboards (thrust power):
- 4HP
- Weight (including battery):
- 41lbs / 18.6kg
- Weight (w/o battery):
- 21.5lbs / 9.8kg
- Weight of Battery:
- 19.5lbs / 8.8kg
- Battery Size:
- 16.37" x 10.82" x 7.95" / 416mm x 275mm x 202mm
- Input Power (from battery):
- 1KW
- Propulsive Power (thrust x speed, shaft power x propeller efficiency):
- 500W
- Max Overall Efficiency:
- 50%
- Max Propeller Speed:
- 1200rpm
- Static Thrust:
- 66lbs
- Shaft Length:
- 24.61" / 625mm
- Standard Propeller Diameter:
- 11.5" / 280mm
