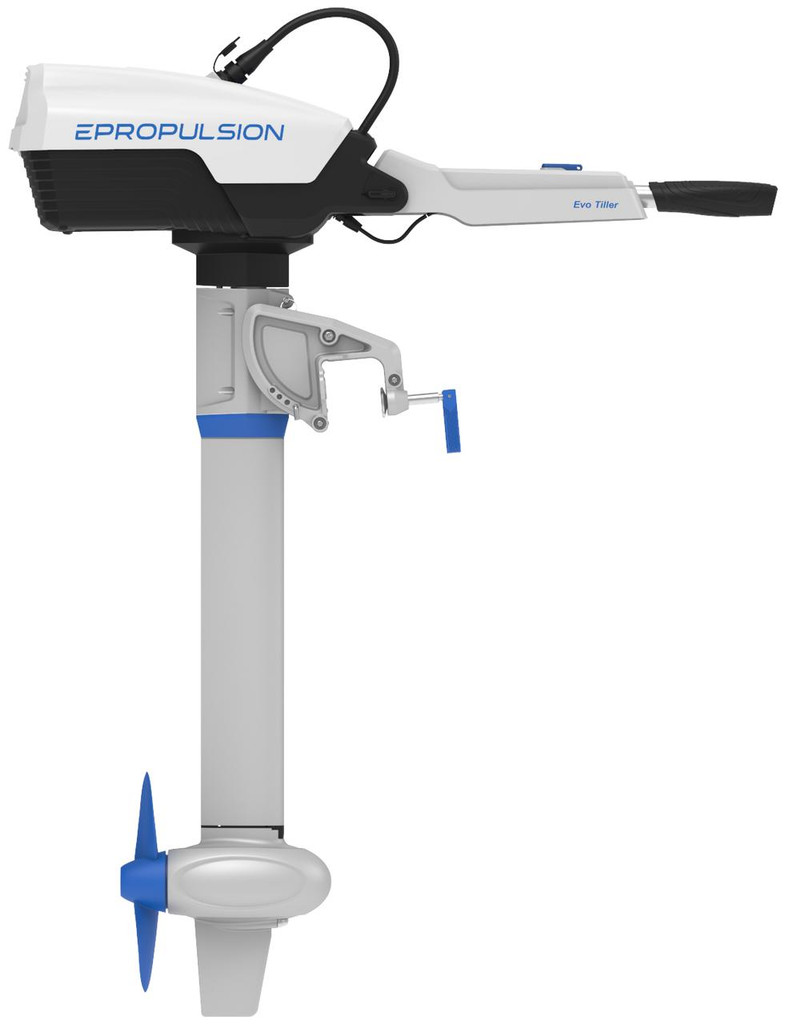

ePropulsion Electric Outboards | Spirit 1.0 Evo Longshaft Motor Body

Specifications

• Comparable Gasoline Outboards (propulsive power):3HP
• Comparable Gasoline Outboards (thrust power):4HP
• Weight (including battery):41lbs / 18.6kg
• Weight (w/o battery):21.5lbs / 9.8kg
• Weight of Battery:19.5lbs / 8.8kg
• Battery Size:16.37" x 10.82" x 7.95" / 416mm x 275mm x 202mm
• Input Power (from battery):1KW
• Propulsive Power (thrust x speed, shaft power x propeller efficiency):500W
• Max Overall Efficiency:50%
• Max Propeller Speed:1200rpm
• Static Thrust:66lbs
• Shaft Length:29.53" / 625mm
• Standard Propeller Diameter:11.5" / 280mm
